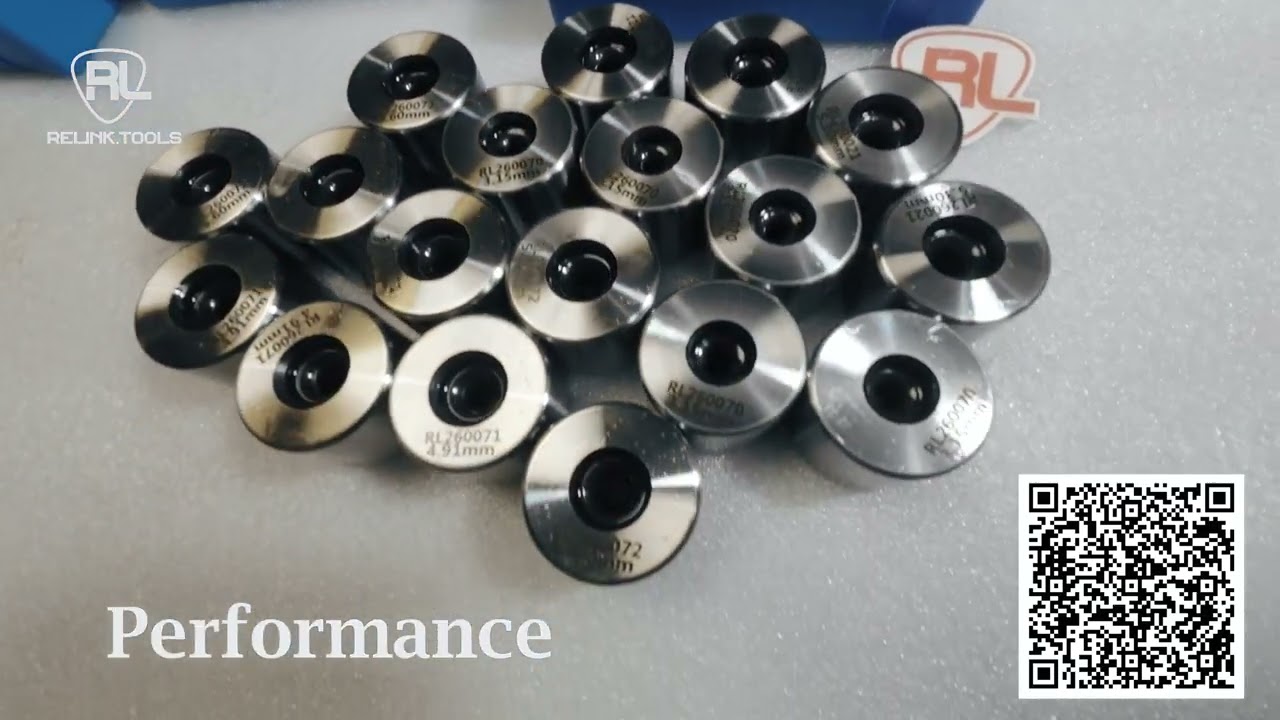

Wire Drawing Dies

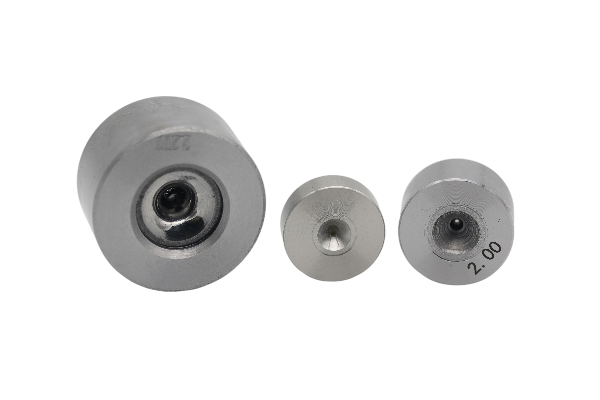

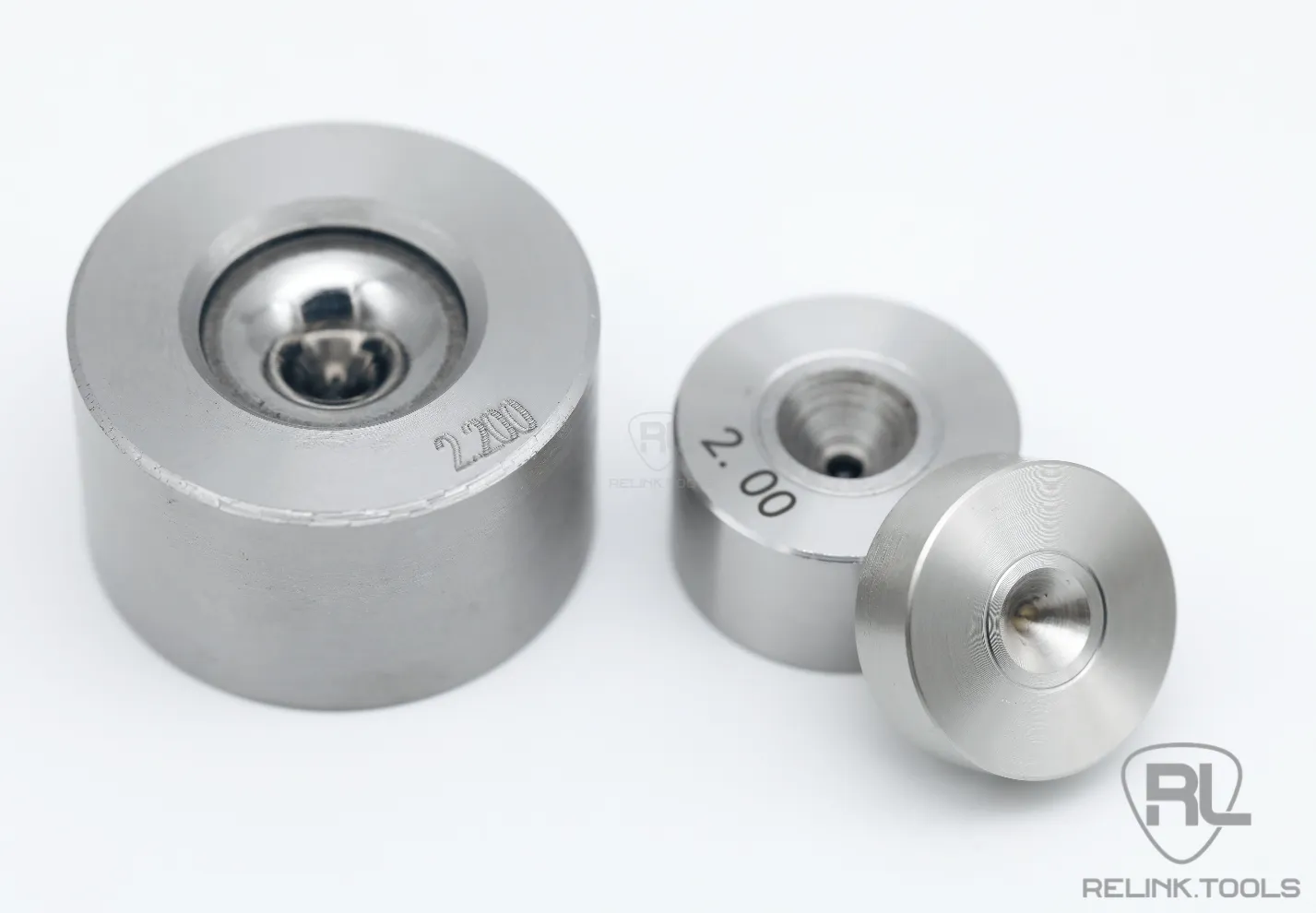

Nano Wire Dies

Nano Dies have become a new trend in the wire drawing industry, which gives the die exceptional hardness, wear resistance, and surface finish.

This results in greater durability, improved wire quality, higher drawing speeds, and heat resistance. These features make it ideal for drawing both carbon and non-ferrous metal wires.

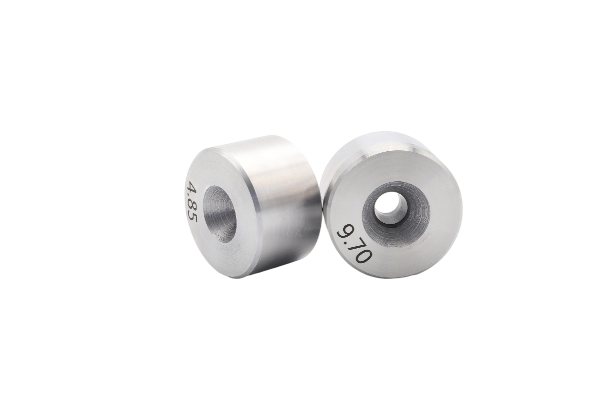

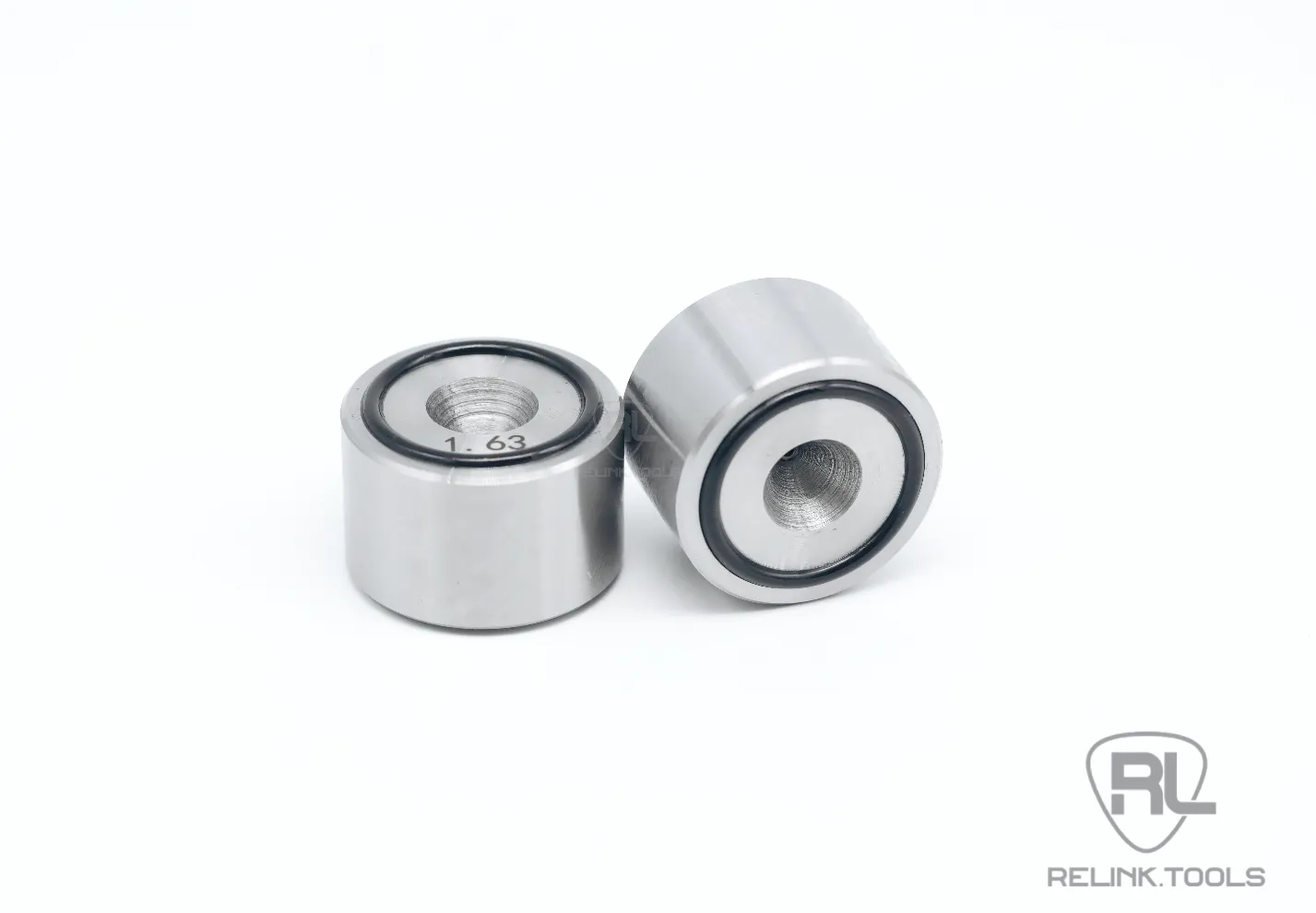

PCD Drawing Dies

More and more customers are choosing to use PCD wire drawing dies instead of tungsten carbide drawing dies, from initially replacing the last 3-4 passes of the finished wire line with PCD wire dies to upgrading the entire wire drawing system dies.
You get significantly longer die life, excellent wire roundness and highly predictable die wear with a good wire surface finish.

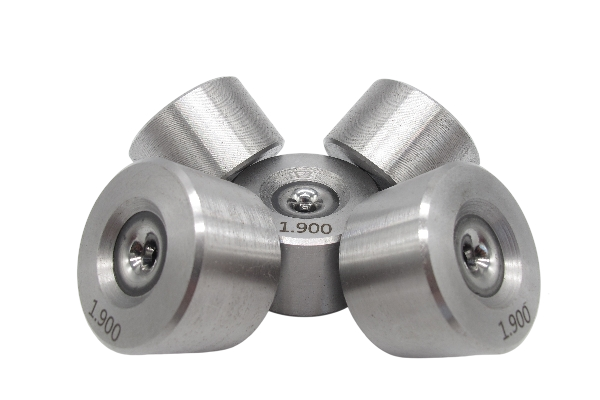

Carbide Drawing Dies

Tungsten carbide wire drawing dies are a wise, economical choice for steel wire and other large-size wire drawing applications that make cost savings a priority over die wear resistance and wire surface finish.
Relink supplies tungsten carbide drawing nibs with inner polished and finished tungsten carbide wire drawing dies with steel case.

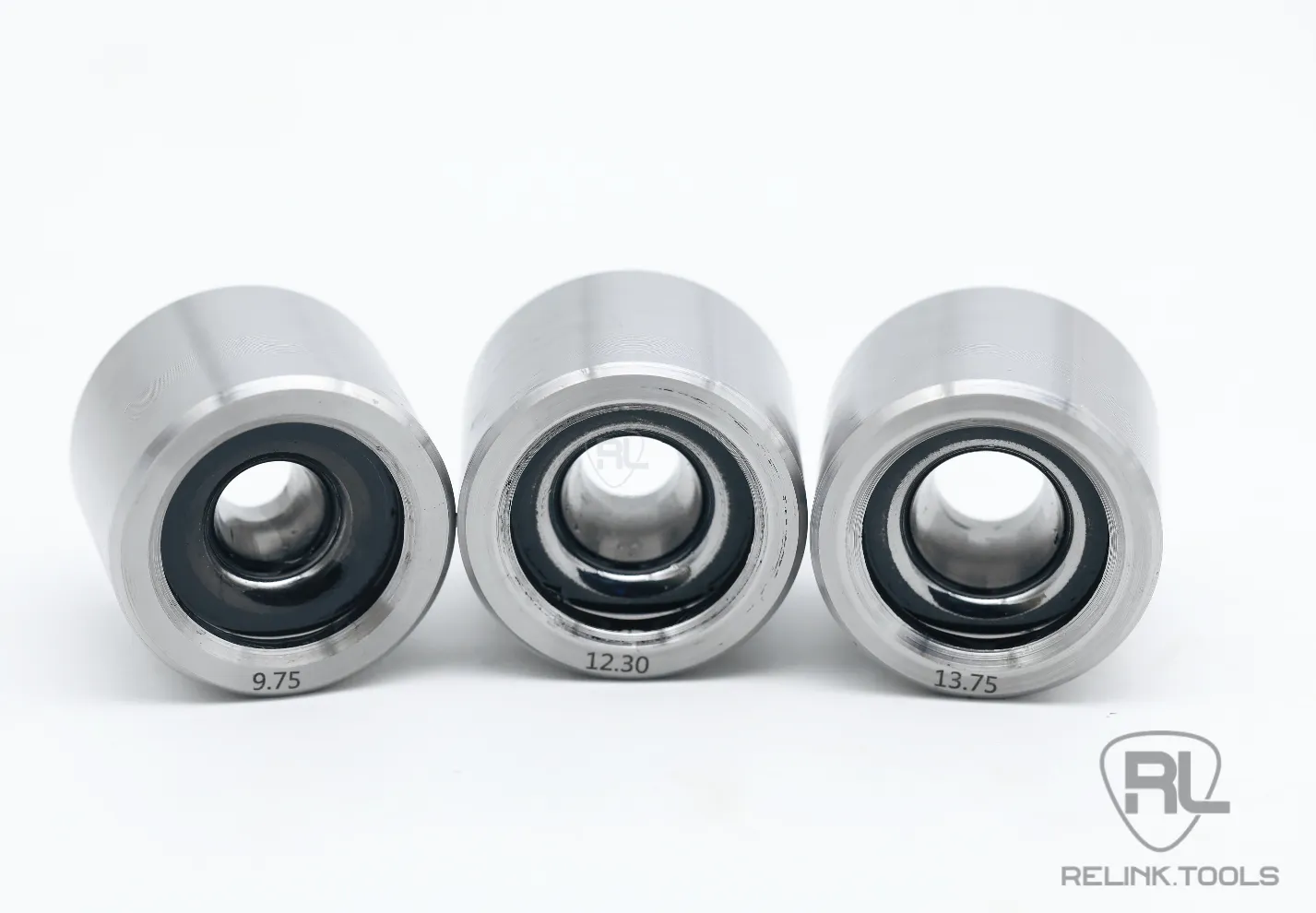

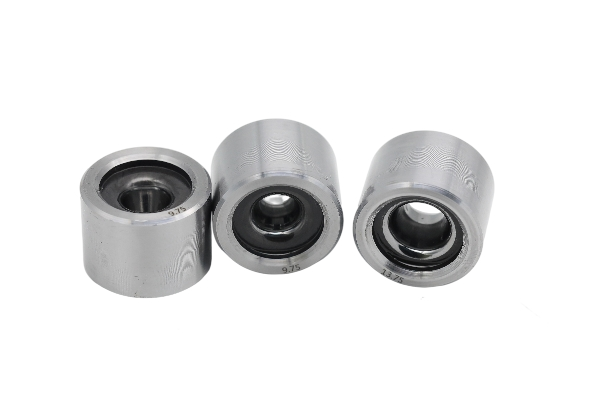

Stranding Dies

The stranding dies are used by wire rope and cable manufacturers for compacting ropes and cables.Stranding dies with manufacturing a cable from incoming wires and round geometry.
Compacting dies with reducing the section of a cable already stranded sharp geometry and blended angles.
PCD dies with Max Ø 35, Nano dies with Ø 5 to 80 mm The matching Split Dies can be produced according to your drawings.

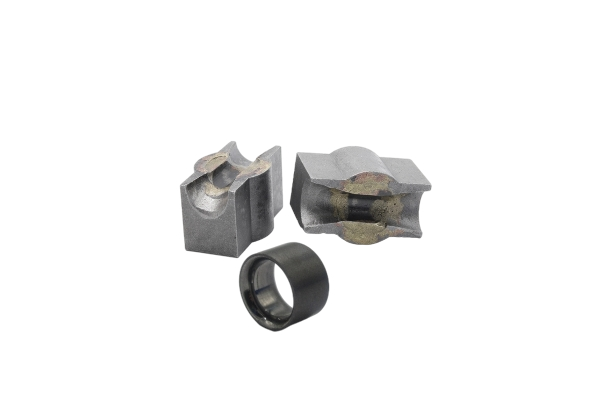

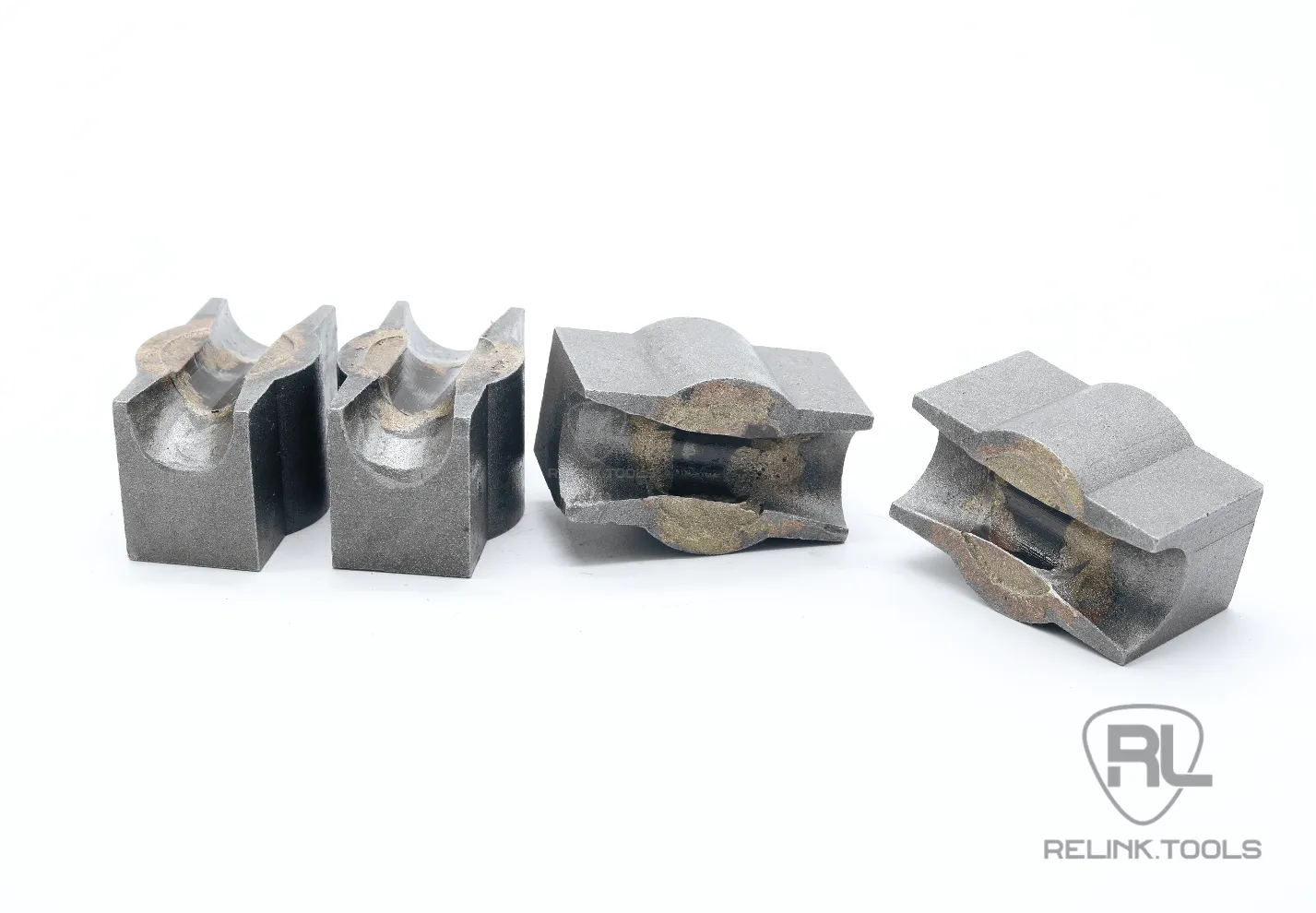

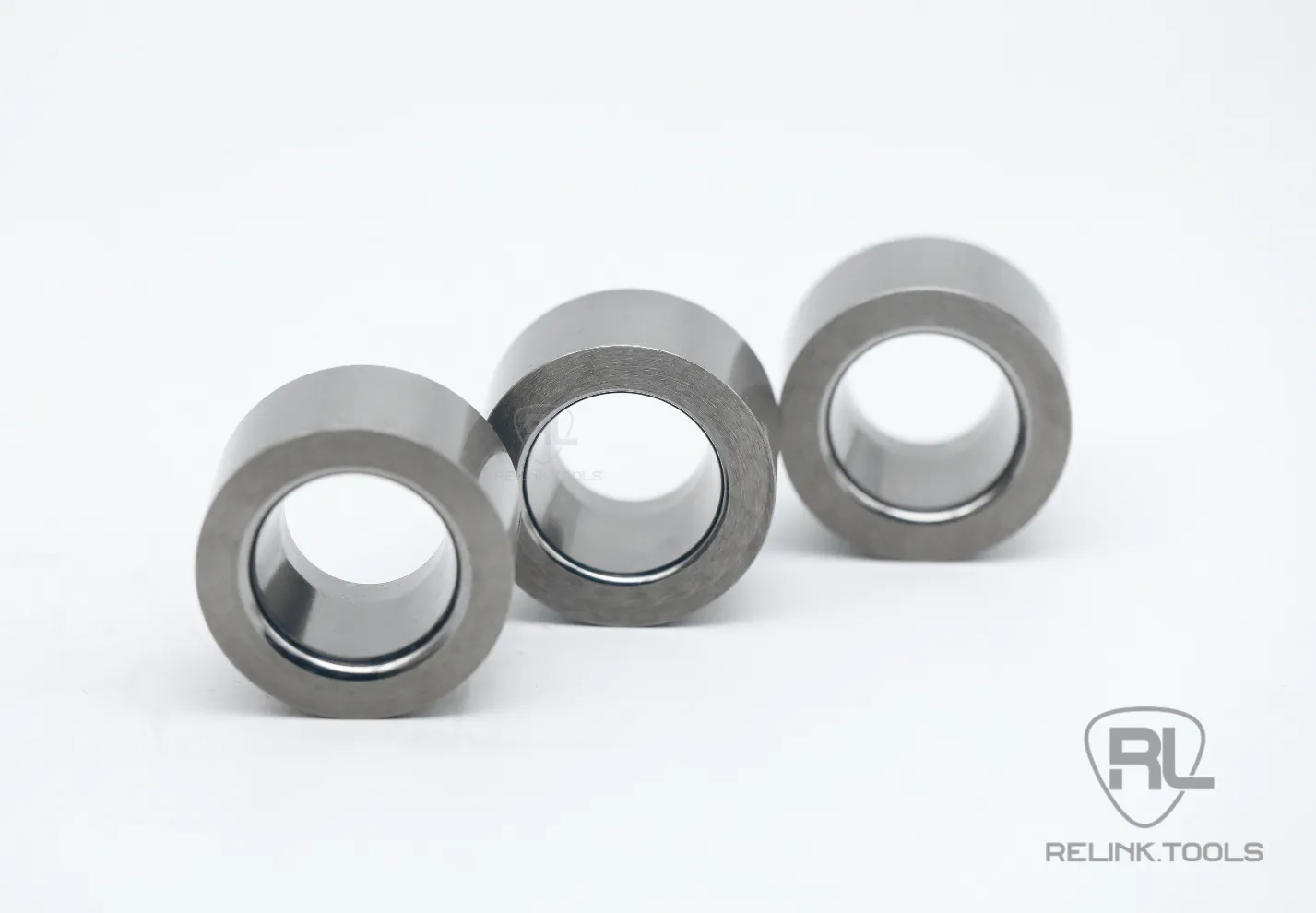

Wire Guides Bushes

Tungsten carbide wire guides bushes for straightening machines and electrodes nozzles of every cemented carbide grade and size, according to customer needs.
Material supplied rough or finished and polished.

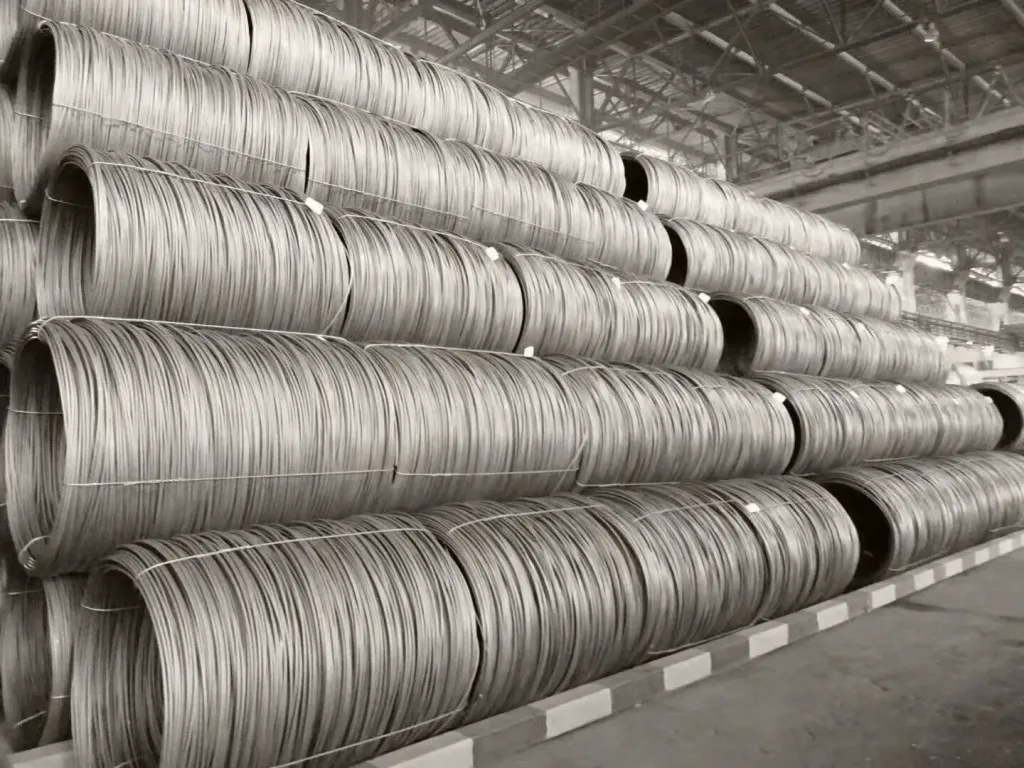

Straightening dies are available polished and/or adjusted to the wire diameter. When processing reinforcing steel, the max. wire diameters (measured over the ribs) apply.

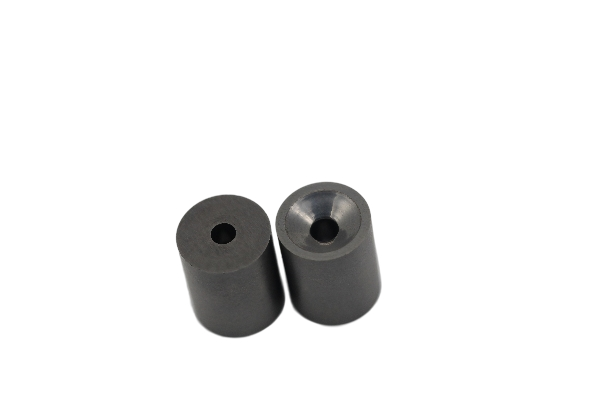

Flux Coating Dies

Flux Coating Wire Drawing Dies are basically applicable in the extrusion of welding electrodes; the sizes 15 x 20mm and 15 x 18mm are standard. We make these dies in different sizes as per the machine type.
Relink is responsible for producing and processing raw materials ourselves, we are able to effectively control product quality. The flux coating dies that we manufacture make your flux look neat and nice and do your work more faster.
