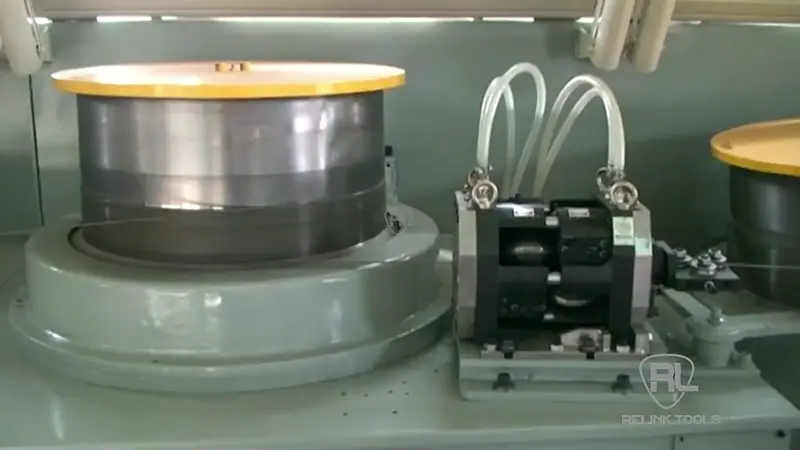

Cold Rolling Cassettes

Cold rolling cassettes Specification:

Smooth or Ribbed Low Carbon Wire:

• Maximum inlet wire:Φ14 mm

• Minimum outlet wire:Φ4 mm

Mounted 3 pcs + 3 pcs rolls

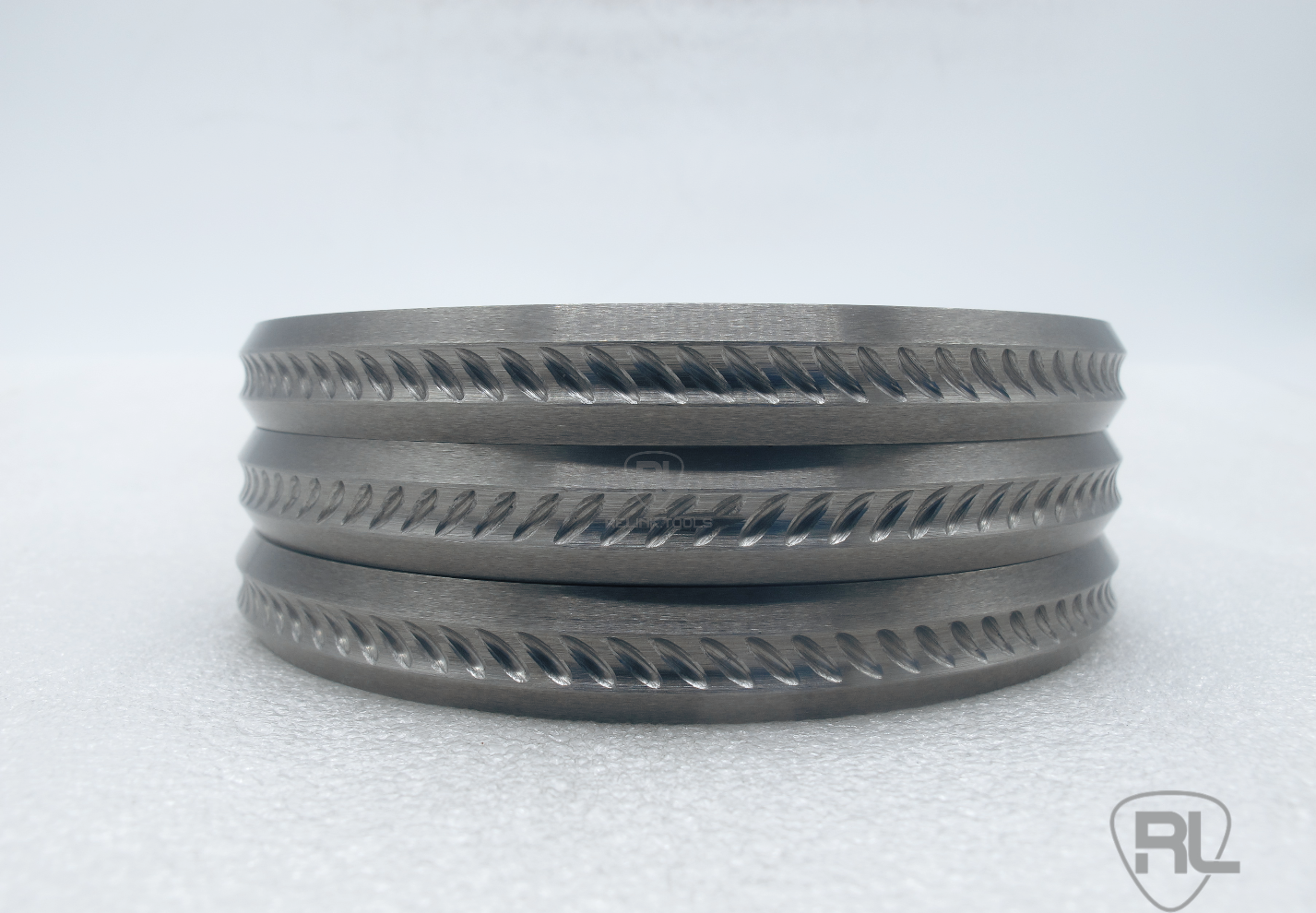

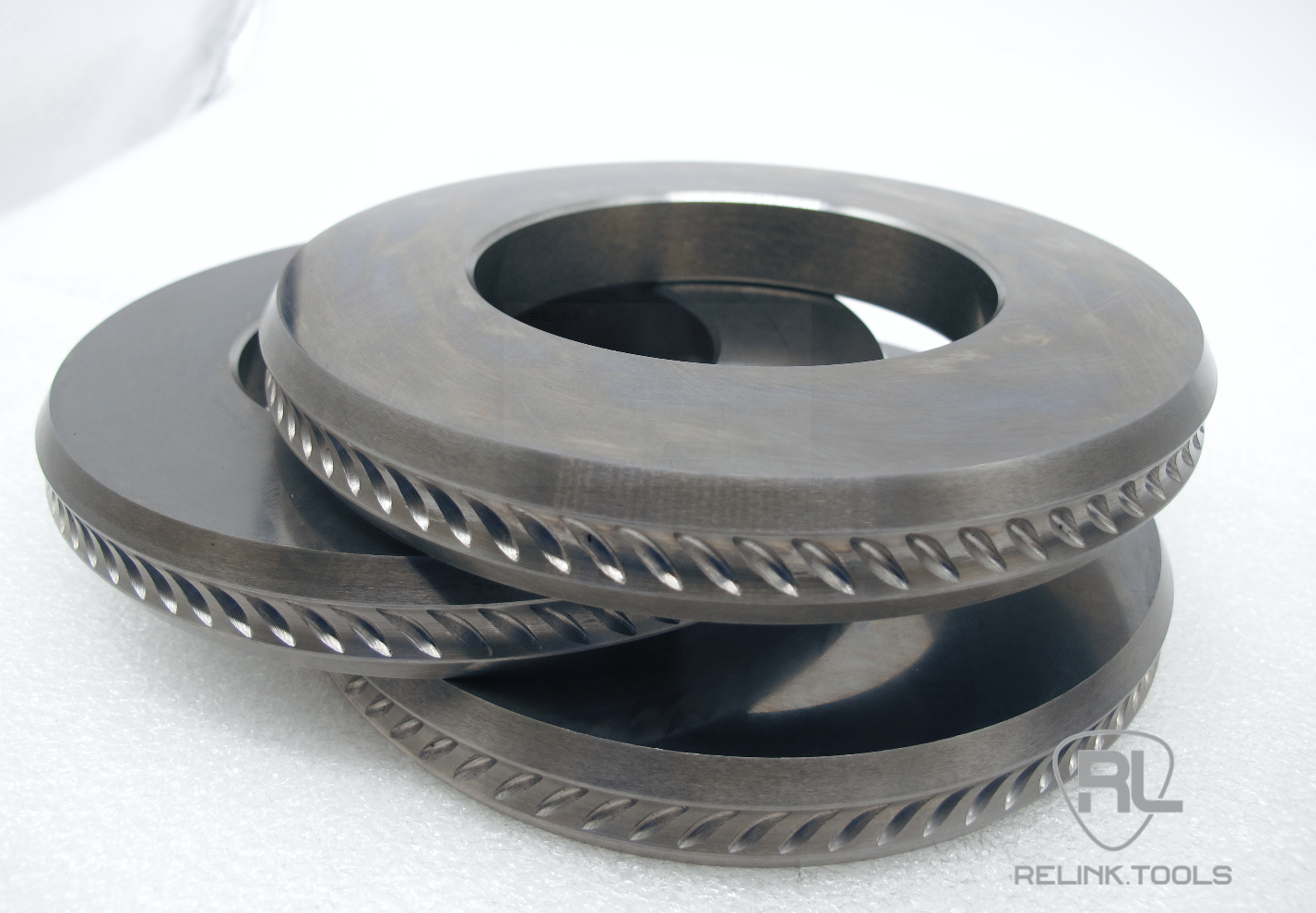

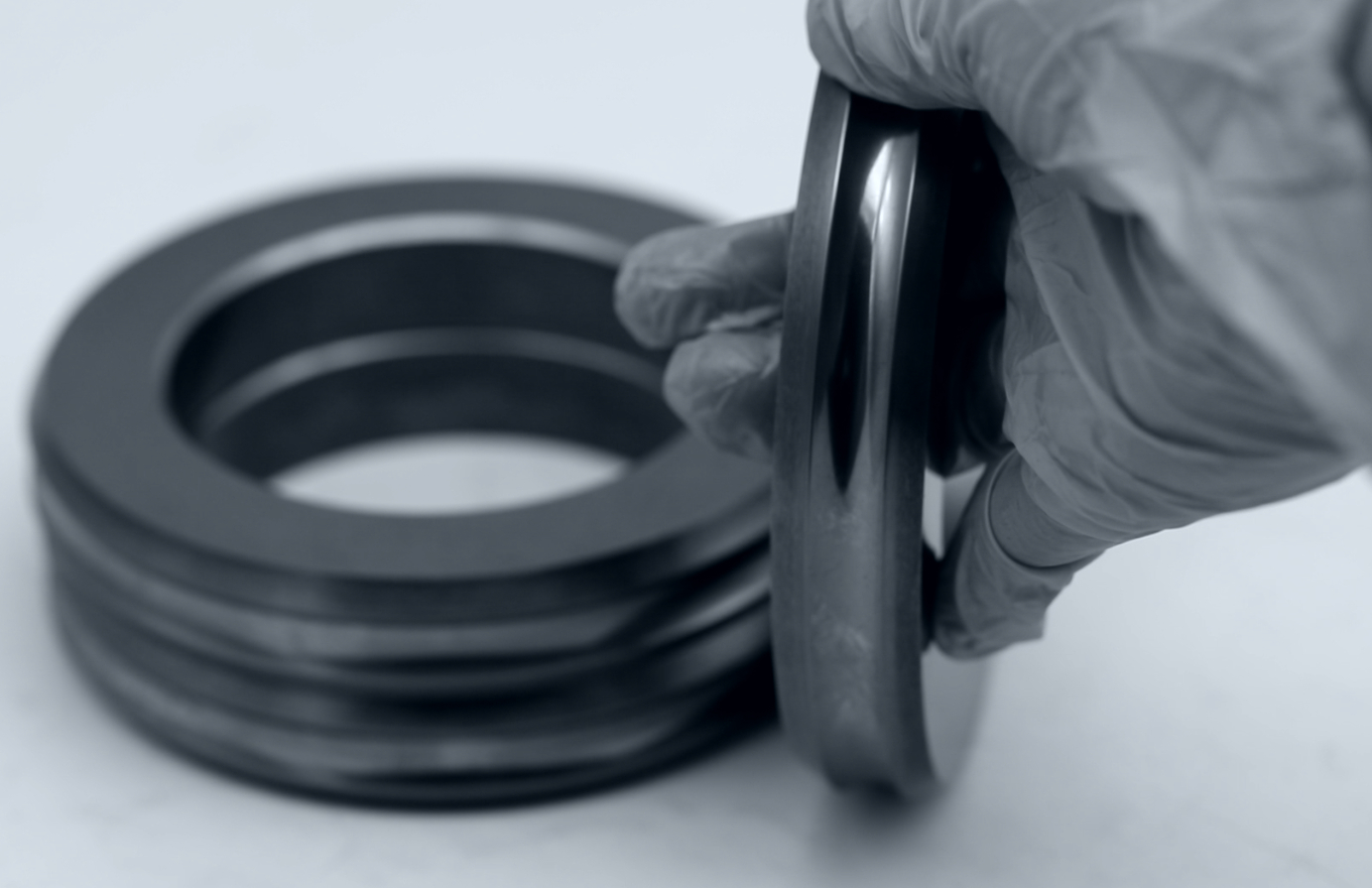

TC Roll Dimensions:

• OD125 x ID82 x H15mm / OD125 x ID82 x H20mm

• OD150 x ID90 x H15mm / OD150 x ID90 x H15mm

• OD90 x ID65 x H15mm / OD110 x ID82 x H15mm

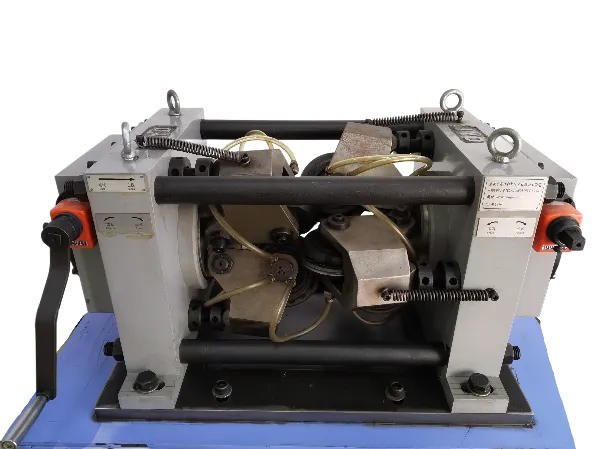

More than just a cold rolling cassette – the stable, efficient core of your wire production line. The RELINK TOOLS Cold Rolling Cassette System is engineered for precision, efficiency, and user-friendliness. It enhances productivity, ensures stability, and makes daily operation safer and easier for workers.

Roll holders serve as a mechanical interface between the tungsten carbide rolls and the rolling cassette. The accuracy of its structure significantly impact the quality of the rolled profile wires and the durability of the tungsten carbide rolls. It is designed to deliver optimal performance in terms of precision and durability.

	Type	ØC (mm)	B (mm)	ØE (mm)	D (mm)
	82×15/25	82	15	25	65
	82×20/25	82	15	30	65
	90×15/30	90	15	30	65
	90×20/30	90	20	30	65
