Introduction to Wire & Cable Manufacturing

Wire and cable manufacturing is a cornerstone of industries ranging from telecommunications to construction. At the heart of this process is wire drawing, a metal processing technique that transforms raw metal into precise wire rods through plastic deformation. Relink’s comprehensive solutions, featuring high-quality wire drawing dies, extrusion tips & dies, and wire drawing powder, ensure efficiency, durability, and precision in every step of production. Our vision is to empower customers with innovative products and expert consulting, enhancing competitiveness and creating lasting value.

Wire Drawing Process

Wire drawing involves forcing metal through a wire drawing die under tensile force, compressing its cross-sectional area to achieve precise shapes and sizes. This cold-processing method produces wire rods with smooth surfaces and accurate dimensions, ideal for wire and cable manufacturing.

Principles and Characteristics

  • Process: Metal blanks undergo plastic deformation through die holes, reducing cross-section and increasing length.

  • Characteristics: High precision, smooth surfaces, ability to produce various cross-sectional shapes and long lengths.

  • Benefits: Simple equipment, high production efficiency, suitable for cold processing.

  • Challenges: High energy consumption, limited by deformation degree.

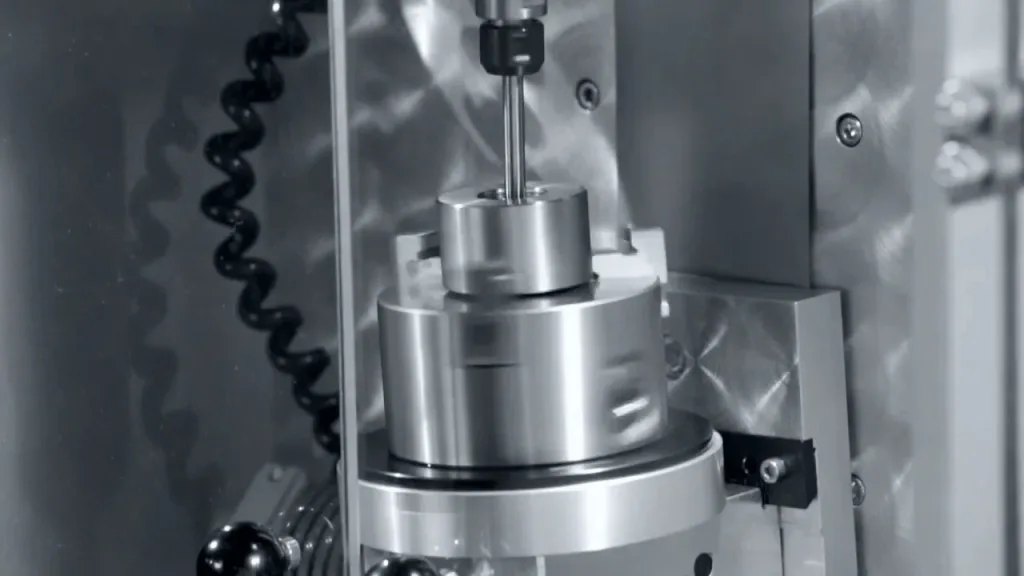

Wire Drawing Dies

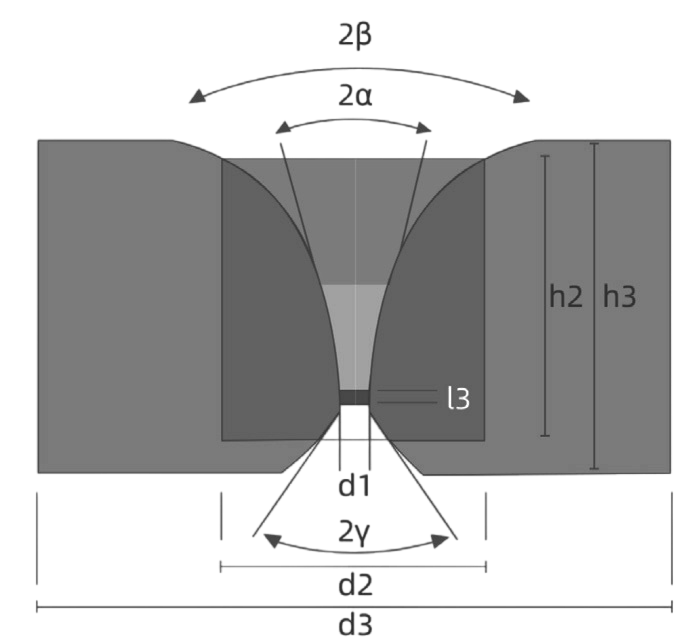

The wire drawing die is critical for shaping wire rods. Its structure includes:

  • Entrance Lubrication Area: Facilitates wire entry.

  • Working Area: Induces plastic deformation.

  • Sizing Area: Ensures uniform wire size and shape.

  • Exit Area: Prevents scratches and cracks.

Die Types:

  • Nano-coated Dies: Replacing carbide dies for steels wire drawing. They are much more resistant to wear.

  • Tungsten Carbide Wire Drawing Dies: A wise economical choice for ferrous rod-size wires,and for relatively short production and trial runs.

  • PCD Wire Drawing Dies: Offering high resistance to wear and excellent wire surface finish.

  • Tungsten Carbide Wire Guide Die & Bush: Can be supplied as sintered, ground and polished condition.

Requirements: Smooth surfaces, perpendicular center line, polished working and sizing areas.

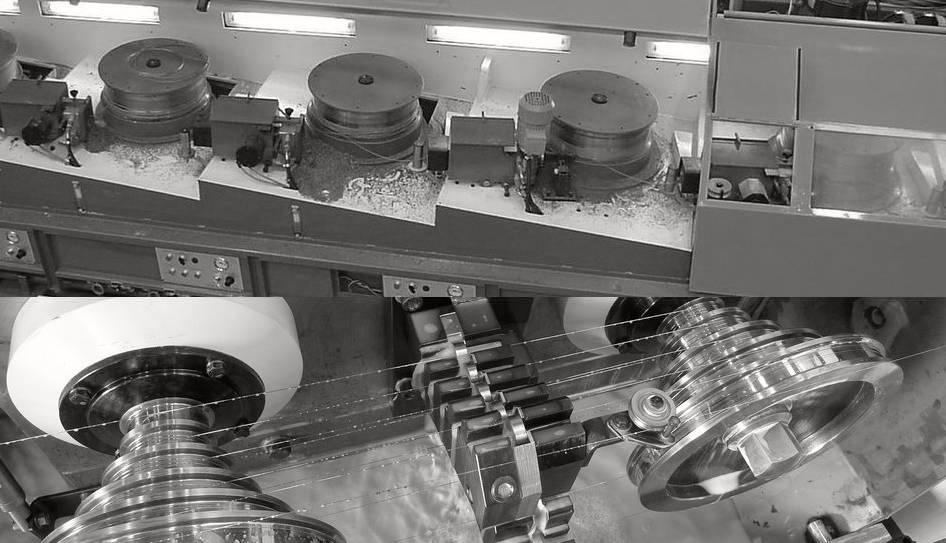

Dray & Wet Drawing Wire

Factors Affecting Wire Drawing

  • Material Properties: Higher tensile strength (e.g., copper vs. aluminum) increases tensile force.

  • Deformation Degree: Greater deformation increases friction and tensile force.

  • Friction Coefficient: Determined by wire smoothness, die material, and lubricant quality.

  • Die Design: Larger sizing areas increase tensile force.

  • External Factors: Wire straightness and die alignment impact efficiency.

Lubrication and Equipment

Wire drawing powder and liquid lubricants reduce friction, cool the process, and clean metal dust. Lubrication methods include:

  • Single-Die Lubrication: Flexible, open system for easy monitoring.

  • Immersion Lubrication: Continuous cooling for sliding machines.

  • Circulating Lubrication: Ensures cleanliness with regular maintenance.

Equipment: Multi-die wire drawing machines (sliding or non-sliding) with cylindrical or tower-shaped drums optimize production.

Tip: Use Relink’s wire drawing powder for optimal lubrication and monitor die wear to maintain wire quality.

Relink offers a complete suite of parts and consumables for wire drawing, ensuring seamless production and superior wire quality.
