Heavy-Duty Planetary Dies for Thread Rolling

We engineer high-precision planetary dies custom-built for high-speed nail and screw production, ensuring your manufacturing plant runs with exceptional uptime and minimal tooling wear. As leaders in the design and manufacturing of planetary dies for nail production, our high-performance, long-lasting solutions deliver a reliable and stable threading process, minimizing quality issues and reducing manufacturing costs to empower your production line.

Get PDF Get a Quote

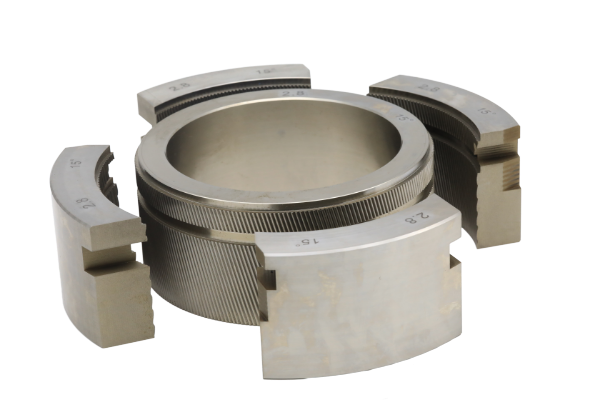

Planetary Rolling Dies for Screw Nails

Relink offers planetary dies for thread rolling machines that meet and exceed customer demands. Designed for producing standard nails such as spiral shanks and ring shanks,mainly for for the construction and shipping pallet industry.
With wire diameter range of 1.2mm to 5.0mm and nail length between 30mm to 100mm.

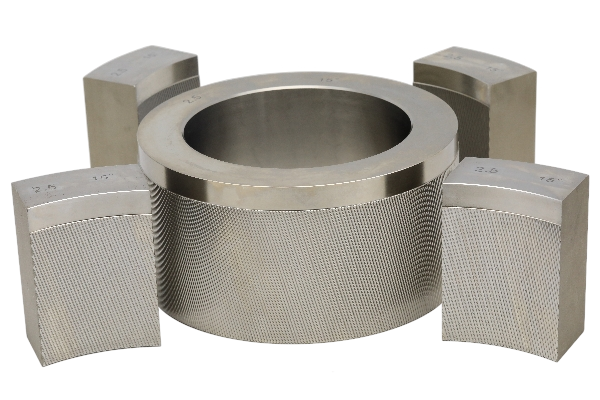

Planetary Dies for Ring Shank Nails

Planetary thread rolling dies offer remarkable adaptability for various nail manufacturing needs.
The high-speed capabilities of up to 1200 nails per minute ensure rapid production without compromising on quality.
A long lifetime of planetary thread rolling die could made from tool steel a(Cr12MoV) and tungsten carbide as per customer requirement.

Notice

To order planetary dies please offer below data:

Machine model, specification;

Ring shank or Screw shank? No. of pieces (e.g.1 ring die + 4 segments,1 ring die + 6segments，ect.);

Thread information: length on work, major (nominal diameter), number of threads,angle or FORM wanted on the die(e.g.2000,67-4-120,etc.)

Material of your products or material of planetary dies((e.g.Cr12mov,D2,DC53, tungsten carbide etc.);

Potential addition requirements.

Key Features

Quality & Precision

High-performance, long-life planetary dies for Nail-making ensure reliable, stable nail threading. Get high-precision threads and minimize final part quality issues.

Long Life

Easily change or flip segments with minimal downtime and resetting. Interchangeable segments allow customers to roll larger volumes of nails.

Integral Service

Suitability for manufacturing in a wide range of materials – to meet diverse application specifications; First class technical assistance, custom made tools.
