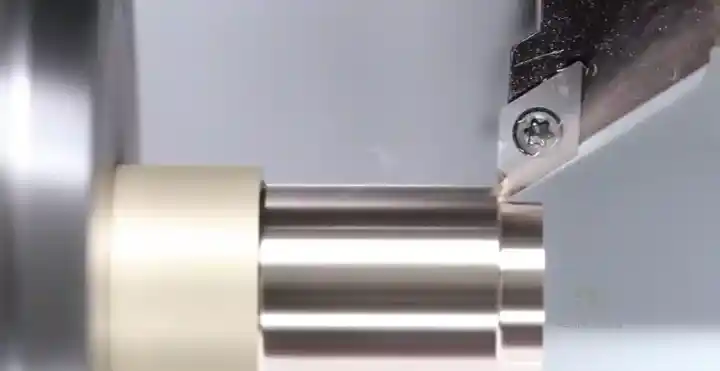

What Are CBN, PCD, MCD CNC Cutting Tools?

CBN, PCD, and MCD are advanced superhard cutting tool materials used in CNC machining for demanding applications. Here’s a clear technical comparison:

1. CBN (Cubic Boron Nitride)

• Composition: Synthetic boron nitride crystals (BN) + metallic binder (e.g., titanium, aluminum).

• Hardness: ~4,500 HV (second only to diamond, 3× harder than carbide).

• Key Properties:Extreme heat resistance (up to 1,400°C)Chemically inert with ferrous metals (no iron reaction)High wear resistance

• Applications:Hardened steels (HRC 45+)Cast iron (gray/ductile)High-speed finishing of aerospace alloys

• Tool Types: Inserts, end mills, grinding wheels.

• Limitation: Brittle, avoid interrupted cuts.

2. PCD (Polycrystalline Diamond)

• Composition: Synthetic diamond micro-grains (1–25μm) sintered with cobalt/nickel binder.

• Hardness: ~7,000–10,000 HV.

• Key Properties:Exceptional abrasion resistanceLow friction coefficientHigh thermal conductivity (dissipates heat fast)

• Applications:Non-ferrous metals (Aluminum, copper, brass)High-silicon aluminum (>12% Si)Carbon fiber compositesWood/plastics

• Tool Types: Inserts, drills, reamers.

• Limitation: Degrades above 750°C (graphitization).

3. MCD (Monocrystalline Diamond)

• Composition: Single-crystal diamond (natural or synthetic).

• Hardness: 10,000 HV (hardest known material).

• Key Properties:Atomically sharp cutting edgeMirror-like surface finish (Ra < 0.01μm)Minimal tool wear

• Applications:Ultra-precision machiningOptics/lens moldingCopper electrodes for EDMJewelry engraving

• Tool Types: Micro-tools, engraving cutters.

• Limitation: Extreme brittleness, only for non-ferrous workpieces.

Critical Comparison

Property	CBN	PCD	MCD
Hardness (HV)	~4,500	7,000–10,000	10,000
Max Temp (°C)	1,400	750	700
Work Materials	Hard steels, cast iron	Non-ferrous, composites	Non-ferrous, plastics
Edge Sharpness	Good	Very Good	Exceptional
Cost	$$$	$$$$	$$$$$

When to Use Which?

• CBN: Hardened steel (>45 HRC), high-speed machining.

• PCD: Aluminum with >8% Si, CFRP, high-volume production.

• MCD: Optical finishes, micromachining, non-ferrous precision work.

⚠️ Avoid PCD/MCD on ferrous metals – diamond reacts chemically with iron, causing rapid tool wear. Use CBN instead.

These tools enable machining efficiency unattainable with carbide, justifying their cost in demanding applications.
