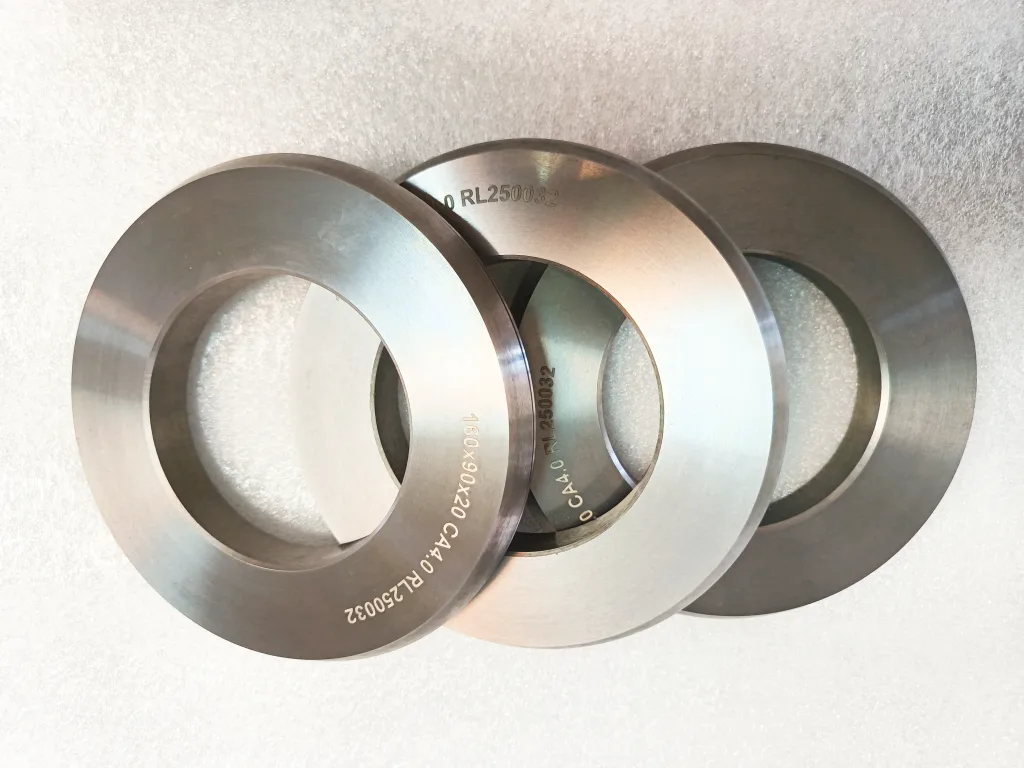

Tungsten Carbide Roller Rings for Cold Rolled Ribbed Rebar Production

Tungsten carbide roller rings (also known as cemented carbide roll rings or TC rings) are essential high-performance components in modern cold rolling lines for producing ribbed rebar (cold-rolled deformed steel bars) and reinforcing wire/mesh.

These rings are typically used in cold rolling cassettes or guide/forming stands to shape steel wire rods into precise ribbed patterns while ensuring excellent surface quality, dimensional accuracy, and long service life.

Why Choose Tungsten Carbide Roller Rings?

Tungsten carbide roller rings outperform traditional materials like cast iron, alloy steel, or high-speed steel rolls in cold rolling applications, especially for high-speed, continuous production of ribbed rebar.

• Superior Wear Resistance — Made from high-purity tungsten carbide (WC) with cobalt (Co), nickel (Ni), or other binders, offering hardness often ≥89 HRA and exceptional resistance to abrasion and thermal fatigue.

• Extended Service Life — Lasts 10–20 times longer than conventional rolls, significantly reducing groove/roll changes, downtime, and maintenance costs.

• High Precision & Surface Quality — Provides smooth, scratch-free finishes on rebar, minimizing surface defects and improving final product quality for better concrete bonding.

• High-Speed Capability — Supports rolling speeds of several meters per second with stable guidance, zero/minimal tension control, and reduced risk of bar deviation or breaks.

• Improved Yield & Efficiency — Lowers scrap rates, stabilizes diameter tolerances, and boosts overall output in high-volume rebar production lines.

Key Features & Technical Advantages

• Material Composition — Primarily WC (68–94%) + Co (6–32%) or Ni/Cr blends, with HIP (Hot Isostatic Pressing) sintering for dense, defect-free structure. Ultrasonic flaw detection (multiple times) ensures no cracks, pores, or inclusions.

• Hardness & Strength — Hardness ≥89 HRA (some grades up to 92–93 HRC equivalent), bending strength ≥2400–2580 N/mm², excellent red hardness and impact toughness.

• Thermal Properties — Good thermal conductivity, forms protective oxide film under proper cooling (recommended 4–6 bar pressure, 250–300 L/min per stand), preventing overheating and cracking.

• Customizable Designs — Available in RO/RT/CA configurations for ribbing patterns, grooved or three-dimensional profiles, compatible with one-strand, two-slitting, three-slitting, or four-slitting lines.

• Standards Compliance — Meets international norms like DIN 488, BS 4449, ASTM A615/A706, GB 13788, and others for rebar production.

Typical Specifications (Customizable)

• Outer Diameter (OD) — Up to 550 mm, common ranges 125–150 mm for cold rolling cassettes.

• Inner Diameter (ID) — 82–90 mm (typical).

• Thickness (T) — 15–20 mm or per drawing.

• Grades — YG6/YG8/YG15 equivalents, or custom like high-Co for toughness or low-Co for max wear resistance.

• Applications — Finishing stands, pre-finishing, ribbing cassettes in cold rolling mills for deformed bars, threaded wire, reinforcing mesh production.

• Cooling Requirements — High-pressure water cooling essential to maintain performance and longevity.

Applications in Cold Rolled Ribbed Rebar Lines

These roller rings are widely used in:

• Cold rolling cassettes for producing ribbed steel bars from wire rods.

• Guide/pass line systems to prevent deviation and maintain alignment.

• High-speed continuous lines for reinforcing mesh, foundations, slabs, walls, and pavements.

• Processes requiring precise rib patterns for superior concrete adhesion and mechanical properties.

Compared to alloy or HSS rolls, tungsten carbide rings deliver 60–80% higher steel throughput per set, lower total cost of ownership (TCO), and reduced labor for frequent replacements.

Benefits for Manufacturers

• Minimize downtime and roll change frequency.

• Achieve tighter tolerances and consistent rib geometry.

• Enhance overall equipment effectiveness (OEE) in high-output mills.

• Support eco-friendly production with less scrap and energy waste.

For custom tungsten carbide roller rings tailored to your cold rolling line (drawings, rolling speed, steel grade, slitting type), contact us for a quote. We offer fast lead times, competitive pricing, and full technical support to optimize your rebar production performance.
