Worn Diamond Tools: Are They Only Good for Scrap?
Worn Diamond Tools: Are They Only Good for Scrap? Unveiling the “Rebirth” Secret of Superhard Tools!
In the modern steel rolling industry, with the widespread application of tungsten carbide rolls, diamond (PCD/PCBN) superhard tools have become the “main force” in machining. They significantly surpass traditional cubic boron nitride tools with higher efficiency and a longer lifespan. However, once these valuable superhard tools are worn, must they be shelved or even scrapped?
The answer is: No!
Our latest research and practice show that through secondary repair, worn diamond tools can be “reborn.” This not only significantly reduces production costs but is also a key step towards achieving cost reduction, efficiency improvement, and technological innovation.
Diamond Tools: Why and How Do They Wear?
During the machining of tungsten carbide rolls, diamond tools face severe challenges. Whether it’s milling cutters for crescent grooves or turning inserts for hole profiles, wear is inevitable. This wear is not from a single cause, but the result of several complex mechanisms working together:
-
Mechanical Abrasive Wear: This is the most common “culprit.” Imagine microscopic hard particles on the workpiece surface acting like countless tiny knives, repeatedly scratching the tool surface, forming grooves over time. Additionally, built-up edge or chips not cleared in time can be repeatedly squeezed and rubbed between the tool and the workpiece, accelerating local “fatigue” on the tool, eventually leading to micro-cracks and the dislodging of diamond crystals.
-
Fatigue Wear: During their manufacturing, diamond tools can sometimes have microscopic defects or internal stress cracks invisible to the naked eye. In the cutting process, the cutting edge is subjected to continuous cyclic impact forces. Especially in high-speed cutting, the immense instantaneous impact is more likely to expand these micro-cracks, leading to chipping of the edge or flaking of small diamond pieces. The harder the material, the more prone the tool is to “fatigue.”
-
Chemical Wear: This is a more subtle form of wear.Graphitization: Diamond becomes unstable at high temperatures and tends to transform into graphite, which has extremely low hardness. High temperatures in the machining zone accelerate this transformation, causing the tool surface to soften rapidly and then be easily removed by mechanical friction.Adhesive Wear: This is a phenomenon unique to machining tungsten carbide with diamond. Simply put, a small amount of material from the tool or workpiece surface adheres to each other and is “carried away” during relative motion. This is also a primary reason why diamond tools cannot be used to machine ferrous materials.
Breaking the Bottleneck: The “Rebirth” Solution for Diamond Tools
Faced with these complex wear mechanisms, we no longer choose to simply scrap the tools. Through in-depth research and innovative practice, we have designed and successfully created a repair platform for PCD diamond crescent groove milling cutters and turning inserts.
The core advantages of this repair platform are:
-

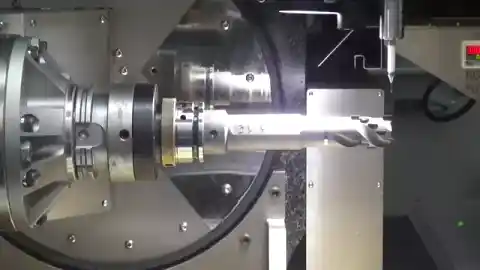

Precise Fixturing: Through cleverly designed threaded rods, bearings, and clamping blocks, the diamond milling cutter or turning insert can be held firmly, ensuring stability during the regrinding process.
-
Flexible Adjustment: The platform features a precise angle adjustment function. By turning limit nuts and rotating blocks, operators can position the tool at the optimal grinding angle based on its specific wear condition, achieving precise regrinding.
A New Life for Worn Tools
The successful application of this repair platform provides solid technical support for the secondary use of diamond superhard tools. We have not only extended the service life of the tools but, more importantly, brought tangible cost savings to enterprises and promoted green manufacturing and sustainable development in the steel rolling sector.
Worn diamond tools are no longer waste but treasures waiting to be “awakened.” Through technological innovation, we are giving these superhard tools new vitality!
Are you also facing similar tool wear problems? What other questions or expectations do you have about diamond tool repair technology?
