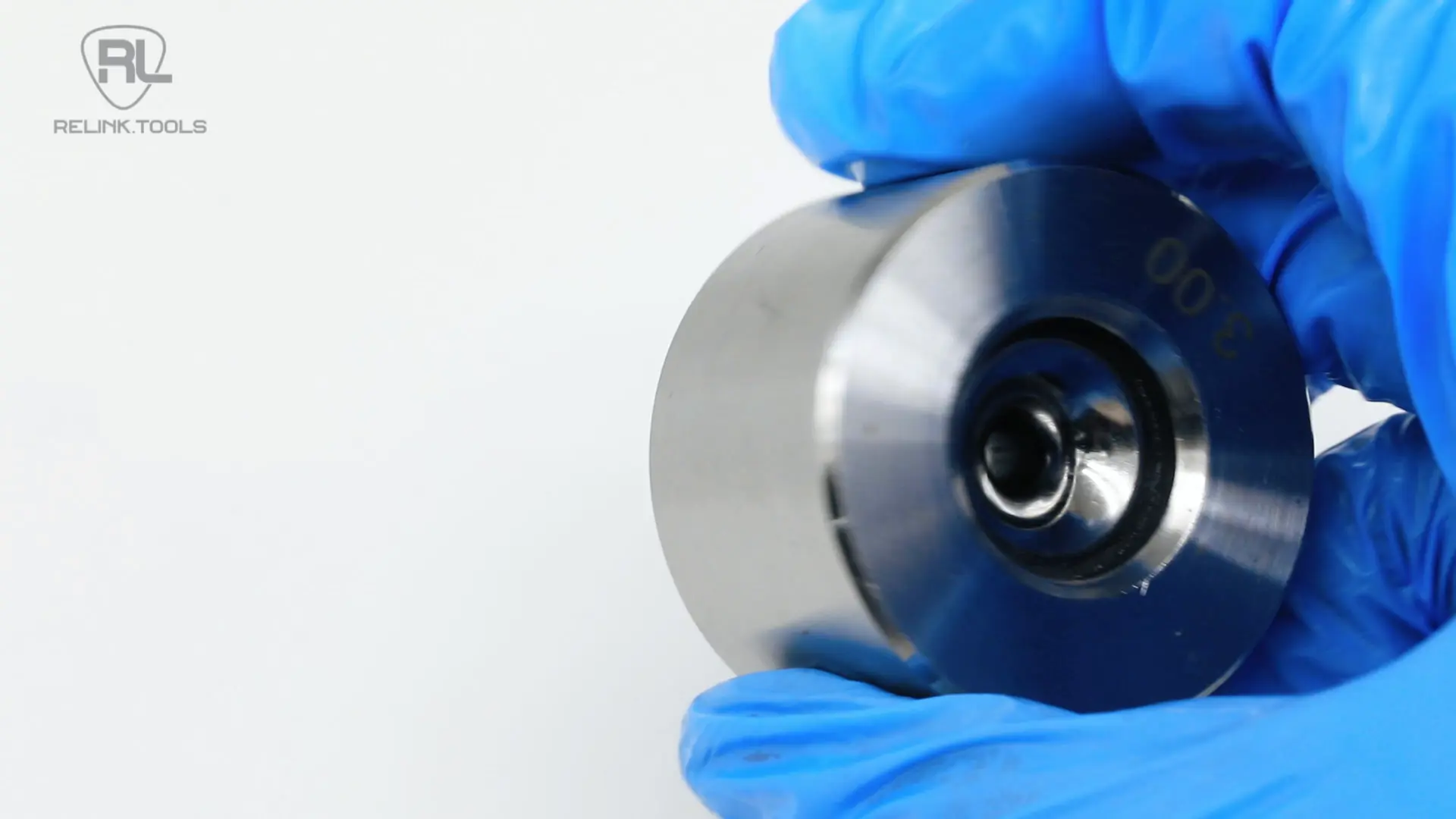

Nano Wire Drawing Dies: The Cost-Effective Revolution for Cable Manufacturing
In the competitive landscape of wire and cable production, the choice of tooling determines not just the quality of the final product, but the long-term profitability of the plant. While Tungsten Carbide (TC) dies have been the industry workhorse for decades, a new hero has emerged: the Nano Drawing Die.
By integrating advanced Chemical Vapor Deposition (CVD) technology, Relink™ Nano Dies offer a hybrid solution that combines the toughness of carbide with the extreme hardness of diamond.
Why Nano Dies are Changing the Game
Traditional dies often face a trade-off: Tungsten Carbide is tough but wears out quickly, while PCD Dies are incredibly durable but become prohibitively expensive for larger diameters. Nano Dies bridge this gap perfectly.
1. 60x Longer Service Life
One of the most significant advantages of Nano Dies is their longevity. Compared to standard TC dies, Nano-crystalline diamond dies can last up to 15x to 60x longer. This drastic reduction in wear means fewer die changes, less machine downtime, and a much lower Total Cost of Ownership (TCO).
2. Zero-Wear Precision and Material Savings
In large-scale cable production, even a few microns of wear can lead to “oversizing,” where you consume more raw material (copper or aluminum) than necessary to ensure the wire meets minimum diameter specs. Because Nano Dies are virtually wear-resistant, the bore diameter remains constant. This stability can save manufacturers up to 3% in raw material costs over long production runs.
3. Mirror-Grade Surface Finish
The nanocrystalline diamond layer (approx. 30μm) provides a surface hardness of 10,000 Hv and ultra-low friction. This results in a mirror-like finish on the wire, reducing heat buildup and minimizing wire breakage—crucial for high-speed Wire & Cable Manufacturing.
Technical Comparison: Nano vs. TC vs. PCD
| Feature | Nano Drawing Die | Tungsten Carbide (TC) | PCD Die |
|---|---|---|---|
| Service Life | 15x to 60x longer | Baseline (1x) | 30x–50x (Small sizes) |
| Diameter Range | 0.1mm – 100mm+ | 0.1mm – 100mm+ | Typically < 15mm |
| Surface Finish | Mirror Grade | Good | Superior |
| Value for Money | Highest (Especially for Large Ø) | Low (Frequent downtime) | High (But expensive) |
导出到 Google 表格
Key Applications in the Industry
Whether you are involved in Fastener Manufacturing or specialized cable production, Nano Dies provide strategic value:
-
Cable Compacting & Stranding: Ideal for maintaining tight tolerances without surface scratches.
-
High-Carbon Steel: Solves the rapid wear issues seen in TC dies when drawing high-strength steel.
-
Large Diameter Rods: In sectors where PCD is too costly (above 20mm), Nano Dies are the only cost-effective “zero-wear” solution.
Conclusion: Is it Time to Upgrade?
The shift from “emotional buying” to “data-driven procurement” in the tungsten market highlights a clear trend: efficiency is king. While the initial investment in Nano Dies is higher than TC dies, the 95% reduction in downtime and significant material savings make them the most logical choice for modern factories.
Ready to optimize your production line? Explore our full range of High-Quality Wire Drawing Dies or contact our technical team at sales@relink.tools for a custom quotation.
